A real purchasing problem: three quotations, all called “40 mesh”
A maintenance buyer needs to replace a stainless woven screen used in a powder-handling line. The old purchase order says only “40 mesh, SS304, 1 metre × 30 metres.” Three suppliers respond. Supplier A proposes 0.18 mm wire, Supplier B proposes 0.25 mm wire and Supplier C proposes 0.30 mm wire. Every quotation says 40 mesh, yet the three products do not have the same opening, open area or weight.
This is not a minor paperwork difference. The proposed nominal apertures range from 455 to 335 micrometres. Calculated open area ranges from 51.34% to 27.83%, and the nominal weight of a 1 × 30 m roll ranges from 19.07 to 52.96 kg. A price comparison made before normalizing the wire diameter would compare three different constructions.
The Woven Wire Mesh Calculator resolves the geometry. The Mesh Count, Micron & Aperture Converter presents the result in the unit used by the process team. The Open Area Calculator and Weight Calculator then expose two important commercial consequences. This article shows the complete calculation and the questions that still require supplier confirmation.
What 40 mesh actually states
For nominal square-opening woven wire cloth, “40 mesh” normally describes 40 openings per linear inch in each principal direction. It is a count, not an aperture. Dividing the exact inch conversion of 25.4 mm by 40 gives a nominal pitch of 0.635 mm. Pitch is the distance from a corresponding point on one wire to the corresponding point on the next wire. One pitch contains one clear opening plus one wire diameter.
pitch = 25.4 mm ÷ mesh count
aperture = pitch − nominal wire diameter
open area = (aperture ÷ pitch)² × 100
for 40 mesh: pitch = 25.4 ÷ 40 = 0.635 mmThe subtraction is why “40 mesh equals a specific micron size” is incomplete. At 40 mesh, 0.18 mm wire leaves 0.455 mm of clear opening. A 0.30 mm wire leaves only 0.335 mm. Both may legitimately have the same nominal count while presenting very different clear space.
Worked comparison: three possible 40-mesh constructions
The following values use the same formulas as the site calculators. The mass estimate uses the calculator's stainless steel 304 reference density of 7,930 kg/m³ and a straight-wire geometry model. It excludes or approximates weave crimp, wire and dimensional tolerance, selvage, coating, core and packaging.
| Quotation | Nominal wire | Calculated aperture | Opening in microns | Calculated open area | Nominal kg/m² | 1 × 30 m roll |
|---|---|---|---|---|---|---|
| Supplier A | 0.18 mm | 0.455 mm | 455 µm | 51.34% | 0.636 | 19.07 kg |
| Supplier B | 0.25 mm | 0.385 mm | 385 µm | 36.76% | 1.226 | 36.78 kg |
| Supplier C | 0.30 mm | 0.335 mm | 335 µm | 27.83% | 1.765 | 52.96 kg |
Supplier A's calculated opening is 120 µm larger than Supplier C's, while its nominal roll mass is about 64% lower. Supplier B is not automatically the “correct middle choice.” The correct construction depends on the required separation, mechanical duty, available support, flow conditions, cleaning method and qualified supply range. The table is a normalization tool, not a ranking.
How each value changes the duty
Aperture
Nominal aperture is the calculated clear distance between adjacent wires. It is the better starting dimension for a geometric retain-or-pass discussion, but it does not by itself guarantee a process cut size.
Open area
Open area is projected geometric porosity. It helps compare how much clear space the constructions present, but it is not a tested flow rate or pressure-drop certificate.
Wire diameter
Wire diameter changes aperture, open area and mass at the same time. It also affects handling and durability, but strength cannot be inferred from diameter alone.
Mass
Nominal mass supports quotation and freight checks. Actual net and packed gross weights must come from the supplier when logistics accuracy matters.
A 51.34% open-area result may appear attractive for flow, but the real pressure loss also depends on fluid density and viscosity, velocity, weave, wire surface, screen thickness, supporting layers, fouling and the way the mesh is installed. Similarly, the heavier 0.30 mm wire may be more robust in some handling conditions, but a mass calculation cannot validate tension, fatigue, abrasion life, unsupported span or impact resistance.
For separation, a nominal 385 µm aperture does not promise that every 400 µm particle will remain on the screen. Particle shape, orientation, deformability, agglomeration, feed depth, vibration and the acceptable amount of misplaced material all matter. The worked 250 micron filtration example explains why aperture is a dimensional starting point rather than an efficiency claim.
A repeatable four-tool workflow
- Enter mesh count and wire diameter. In the Woven Wire Mesh Calculator, enter 40 openings per inch and the exact nominal wire diameter from the quotation. Do not enter wire gauge unless the named gauge system has first been converted to diameter.
- Read pitch, aperture and open area together. Confirm that pitch is 0.635 mm and that the calculated aperture is positive. Save the inputs with the result so another reviewer can reproduce it.
- Convert the opening into the process team's unit. Report 0.385 mm as 385 µm when discussing fine-particle dimensions, but keep the original nominal wire and mesh data attached.
- Estimate mass using the actual roll or panel dimensions. Choose the correct material reference, width, length and quantity. Keep nominal net mesh mass separate from the supplier's measured net weight and packed gross weight.
If a drawing specifies the opening but not mesh count, use the Reverse Mesh Specification Finder to see which wire diameter each candidate mesh count would require. A mathematically possible combination is not automatically a preferred, weaveable or regularly stocked construction, so the supplier still needs to confirm production feasibility.
What the standards add to the calculation
ISO 4783-2 provides preferred aperture and wire-diameter combinations for woven wire cloth within its scope. Its official summary states that woven cloth should be designated in the sequence of aperture width, wire diameter, wire material and weave type. That sequence is useful because it places the clear opening before the traditional mesh-count shorthand.
ISO 9044 defines terminology and technical requirements for industrial square-aperture woven wire cloth used for screening and specifies maximum permissible error, requirements and test methods within its scope. ASTM E2016 covers industrial woven wire cloth for general use, including particle separation, and its official scope notes that it establishes technical requirements such as wire and mesh tolerances for constructions covered by the standard.
These standards are not interchangeable for every product. ISO 9044 excludes coated-after-weaving cloth, pre-crimped screens and welded screens from its stated scope. ASTM E2016 excludes several special cloth types, including welded wire cloth and industrial filter cloth. Check the current project standard and obtain its full text before writing contractual tolerances. Official summaries are available for ISO 4783-2:1989, ISO 9044:2016 and ASTM E2016-22.

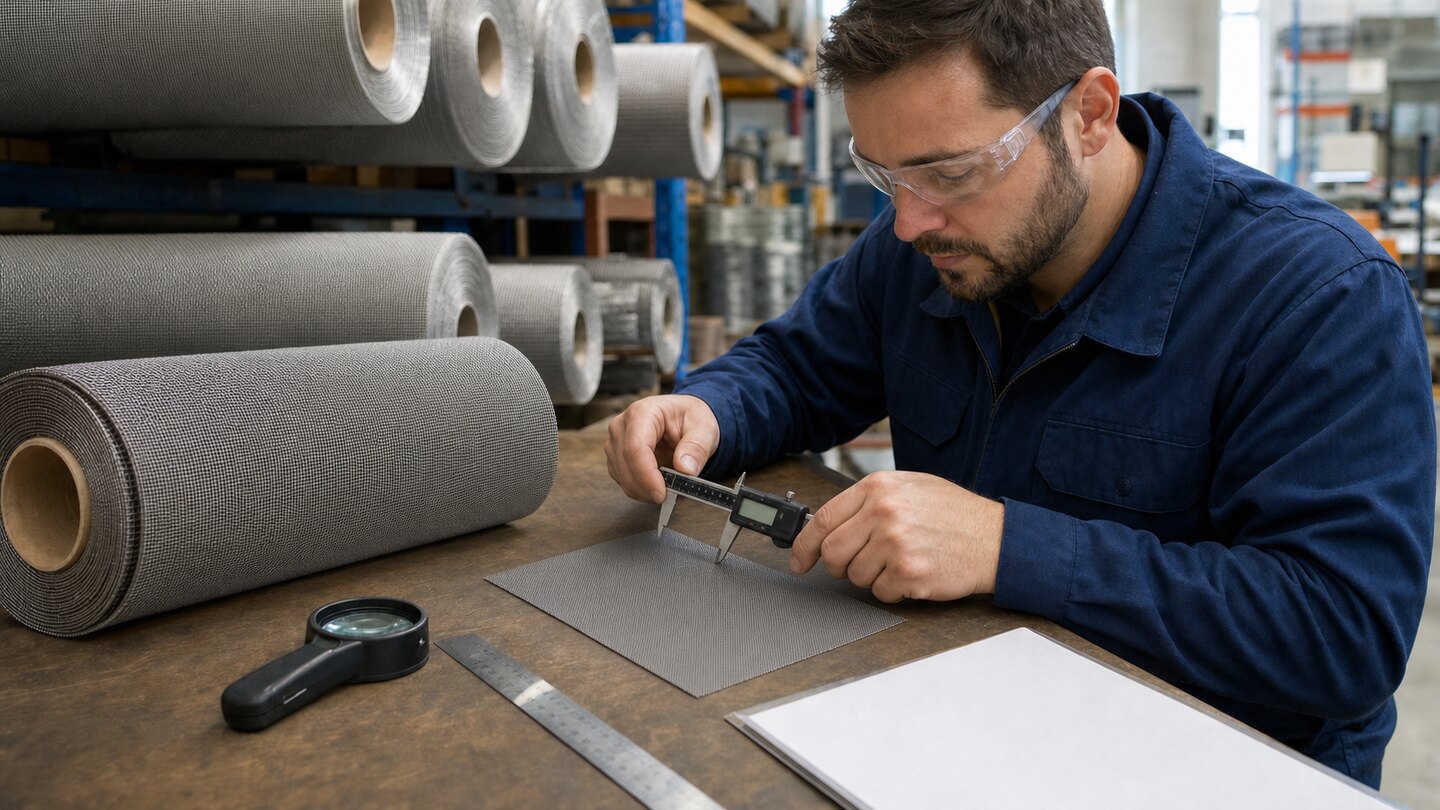

How to inspect an incoming 40-mesh roll
Start with traceability: package label, supplier, order number, alloy declaration, heat or batch reference when required, roll dimensions and the approved specification. Inspect the cloth under suitable lighting for creases, broken wires, contamination, distorted areas and edge damage before cutting a sample.
Use magnification appropriate to the fineness of the cloth. Count across a defined distance in both principal directions rather than trusting one tiny field. Measure wire diameter and opening at multiple representative locations using a method and equipment suitable for the required tolerance. Avoid a single photograph-based measurement unless the imaging system is calibrated and the method is agreed. The site's sample measurement guide provides a field checklist, while the applicable standard should control contractual inspection.
Compare the sample with the agreed aperture, wire, material and weave—not only with the words “40 mesh.” Record the instrument, magnification, locations, readings and disposition. If the roll is critical to filtration or screening performance, connect dimensional acceptance to a representative process trial.
Rewrite the incomplete purchase description
Replace “40 mesh SS304 roll” with a controlled description such as:
Industrial woven wire cloth; plain square weave;
nominal aperture 0.385 mm; nominal wire diameter 0.25 mm;
stainless steel 304; 1,000 mm finished width × 30 m roll length;
edge condition: [state]; quantity: [state];
dimensional tolerance and inspection basis: [state agreed standard];
required material and inspection documents: [state].The example is not a universal 40-mesh specification. It simply converts Supplier B's geometry into explicit purchasing fields. Add the application, separation objective, temperature, chemical and cleaning exposure, support arrangement, acceptable defects, packaging, labeling and sample approval requirements. For a complete commercial comparison, use the quotation comparison guide.
Frequently asked questions
What micron size is 40 mesh?
There is no single micron value without wire diameter. With a 0.18 mm wire, this article's calculation gives 455 µm. With 0.25 mm wire it gives 385 µm, and with 0.30 mm wire it gives 335 µm.
Is 40 mesh the same as a 400 micron opening?
Not necessarily. A 0.400 mm opening at 40 mesh would require a nominal wire diameter of 0.235 mm because the pitch is 0.635 mm. The supplier must confirm whether that combination is preferred and available.
Does a higher open area always mean better performance?
No. Open area is geometric. Real throughput, pressure loss, separation, blinding and service life depend on the mesh and process together. It is a comparison input, not a standalone performance rating.
Which 40-mesh wire diameter should I order?
Choose only after defining the required nominal aperture, mechanical duty, material environment, tolerance and validation method. If the old specification is incomplete, measure a traceable sample and compare candidates with the calculators before requesting supplier confirmation.
Can Wire Mesh Selector approve the final construction?
The tools expose calculations and missing fields; they do not certify delivered mesh or process performance. For help turning the result into an RFQ, request a specification review and include the application, current sample or drawing, required dimensions and operating conditions.
